CAMAG® TLC Plate Heater 3

    The TLC Plate Heater 3 is designed for heating TLC/HPTLC plates to a selected temperature before or after a derivatization reagent has been applied.

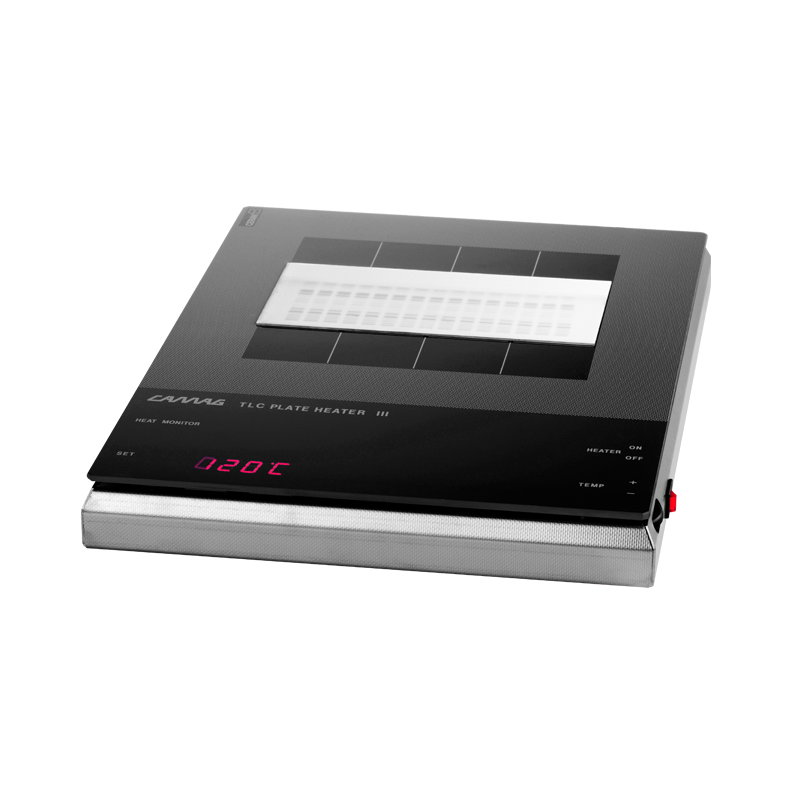

CAMAG® TLC Plate Heater 3

The TLC Plate Heater 3 is a device for heating TLC/HPTLC plates, permitting the optimal heating during the derivatization reaction. It features a CERAN® heating surface which is resistant to all common reagents and is easily cleaned. The 20 x 20 cm heating surface has a grid to facilitate correct positioning of the plate. Programmed and actual temperature are digitally displayed. The temperature is selectable between 25 and 200 °C. The plate heater is protected from overheating.

Key Features

  • For uniform heating of TLC/HPTLC plates
  • Temperature selectable between 25 and 200 °C
  • CERAN® heating surface (resistant to all common reagents)
  • Grid for correct plate positioning

Downloads

Instruction Manual TLC Plate Heater 3
pdf
Declaration of Conformity TLC Plate Heater 3
pdf

Technical Specifications

Heating plate

CERAN-ceramic; heated area with grid, 200 x 200 mm

Temperature control range

25–200 °C

Fuses

315 mA, 250 V slow blow

Power connection

115/230 V, +/- 10%; 50/60 Hz

Dimensions (W x D x H)

306 x 420 x 34 mm

Ordering Information

022.3306

CAMAG® TLC Plate Heater 3

230 V; Stainless steel housing, flat ceramic top; for TLC plates up to 20 x 20 cm; digital temperature display; temperature range 25–200 ºC
