Hyperspectral imaging of analytes separated on HPTLC glass plates (20 x 10 cm).

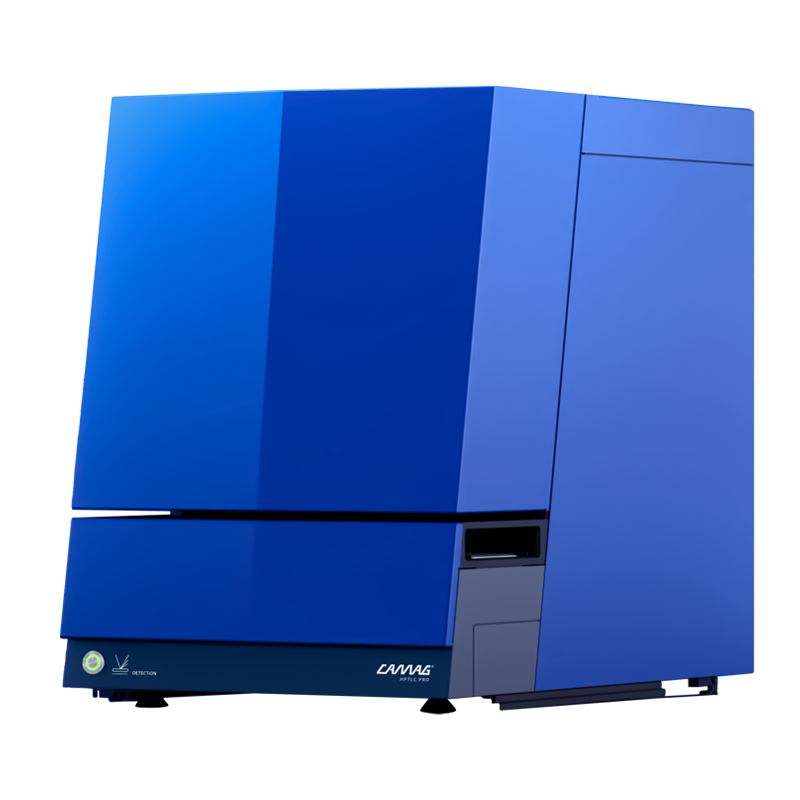

The HPTLC PRO Module DETECTION is a part of the CAMAG® HPTLC PRO SYSTEM, which is the first fully automated HPTLC system worldwide.

The HPTLC PRO Module DETECTION - anticipated launch in 2021 – employs hyperspectral imaging technology to characterize and quantify all analytes. The CAMAG® HPTLC Software visionCATS allows you to prepare an unlimited number of analysis files, which can be used sequentially (Sequence Mode).

As a part of the CAMAG® HPTLC PRO SYSTEM, the Module DETECTION shares several components with the other modules and has a similar design. Each module can be operated either as standalone (Module Mode) or within the HPTLC PRO SYSTEM (System Mode). For the System Mode the modules are connected and a conveyor transports the HPTLC plate from one module to the other.

Key features

  • Part of the fully automated sample analysis and evaluation by HPTLC PRO
  • Excitation with Xenon or LED
  • Detection range from 200-1000 nm
  • Absorbance and fluorescence measurement
  • Evaluation of acquired hyperspectral data with visionCATS
  • Software-controlled by visionCATS
