CAMAG® TLC Sprayer

    The TLC Sprayer is used for manual spraying of derivatization reagents onto TLC plates.

CAMAG® TLC Sprayer

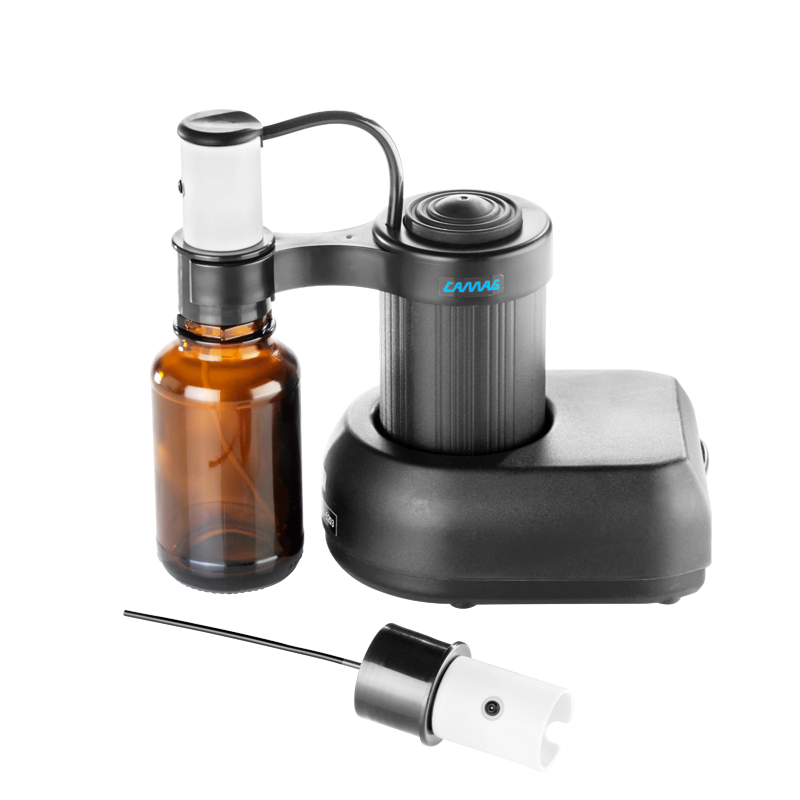

The TLC Sprayer with the integrated pump unit is used for manual spraying of derivatization reagents onto TLC plates. Two differents spray heads are available. For solutions of regular viscosity, e.g. lower alcohol solutions, spray head A is suitable. For solutions of higher viscosity, e.g. sulfuric acid reagents, the spray head B is recommended. Air is used as propellant.

Key Features

  • Easy to use, with electro-pneumatic spray function
  • Formation of fine aerosol with particles of 0.3 to 10 µm
  • Low reagent consumption
  • With Charger unit
  • Two different spray heads available

Downloads

Instruction Manual TLC Sprayer
pdf
Declaration of Conformity TLC Sprayer
pdf

Technical Specifications

Charger unit

Mains voltage:

100 - 240 Volt / 50 / 60 Hz

Power consumption:

approx. 5 Wh

Pump unit

Operating voltage:

4.8 V DC

Inductive charge:

45 - 50 mA / 14 - 16 hours

Ordering Information

022.6530

TLC/HPTLC Sprayer complete with spray head type A and B, reagent bottle 100 mL, reagent bottle 50 mL

022.6535

Pack of 5 spray heads type A and 1 type B

022.6536

Reagent bottle 100 ml with cap, pack of 6

022.6537

Reagent bottle 50 ml with cap, pack of 6
