CAMAG® TLC-MS Interface 2

    The TLC-MS Interface 2 enables users to directly analyze zones from TLC and HPTLC plates by Mass Spectrometry. A substance confirmation can be obtained in less than a minute.

CAMAG® TLC-MS Interface 2

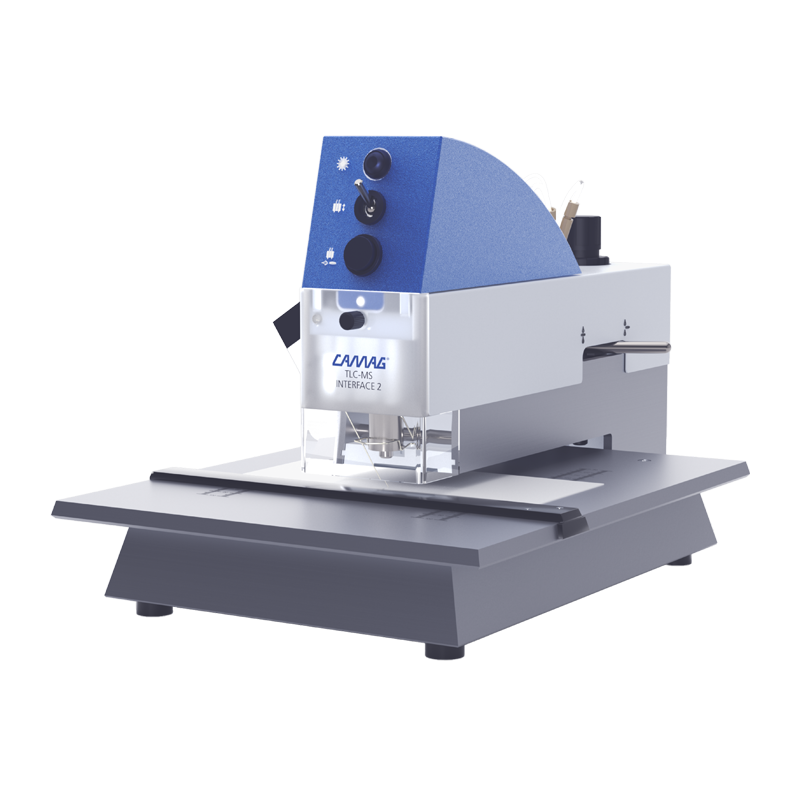

The elution-based TLC-MS Interface 2 is a highly convenient and versatile instrument allowing for rapid and contamination-free elution of TLC/HPTLC zones with direct transfer to a mass spectrometer.

Through the pioneering concept of hyphenating High-Performance Thin-Layer Chromatography with Mass Spectrometry unequivocal substance identification is possible. The TLC-MS Interface 2 can be installed plug & play with any LC-MS system without adjustments or mass spectrometer modifications. Depending on the MS system, a substance can be identified within a minute via its mass spectrum, or for an unknown substance zone, the respective sum formula can be obtained. Furthermore, interesting zones can be eluted into vials for further investigations with, e.g., NMR, (ATR-)FTIR, ESI-MS, and MALDI-MS.

The chromatogram zones are eluted from the HPTLC plate with methanol or another suitable solvent with the flow speed appropriate for the LC-MS system. The round elution head is used for circular zones and the oval elution head for zones in the form of bands. After elution the eluate is either directly transferred to the mass spectrometer or collected in a sample vial for further offline analysis.

The TLC-MS Interface 2 features a modified elution head and an easily accessible, exchangeable filter, arranged in front of the valve. Cleaning is facilitated as compared to the previous version, making it highly efficient. By pushing a button, the elution path is cleaned of matrix particles with compressed air, increasing the lifetime of the filter and preventing the system from becoming blocked. These filters can be easily replaced without any modification to the elution head.

Plate positioning is significantly simplified: together with the positioning scale and the adjustable plate-stopper, the integrated crosshair laser enables accurate and reproducible positioning of the plate. Alternatively the coordinates determined by the TLC Visualizer 2 or the TLC Scanner 4 can be used to precisely position the HPTLC plate.

Key Features

  • Rapid and contamination-free elution of selected zones
  • Direct transfer to any mass spectrometer
  • Plug & play installation
  • Confirmation of known substances within a minute
  • Any plate format up to 20 x 20 cm

Example

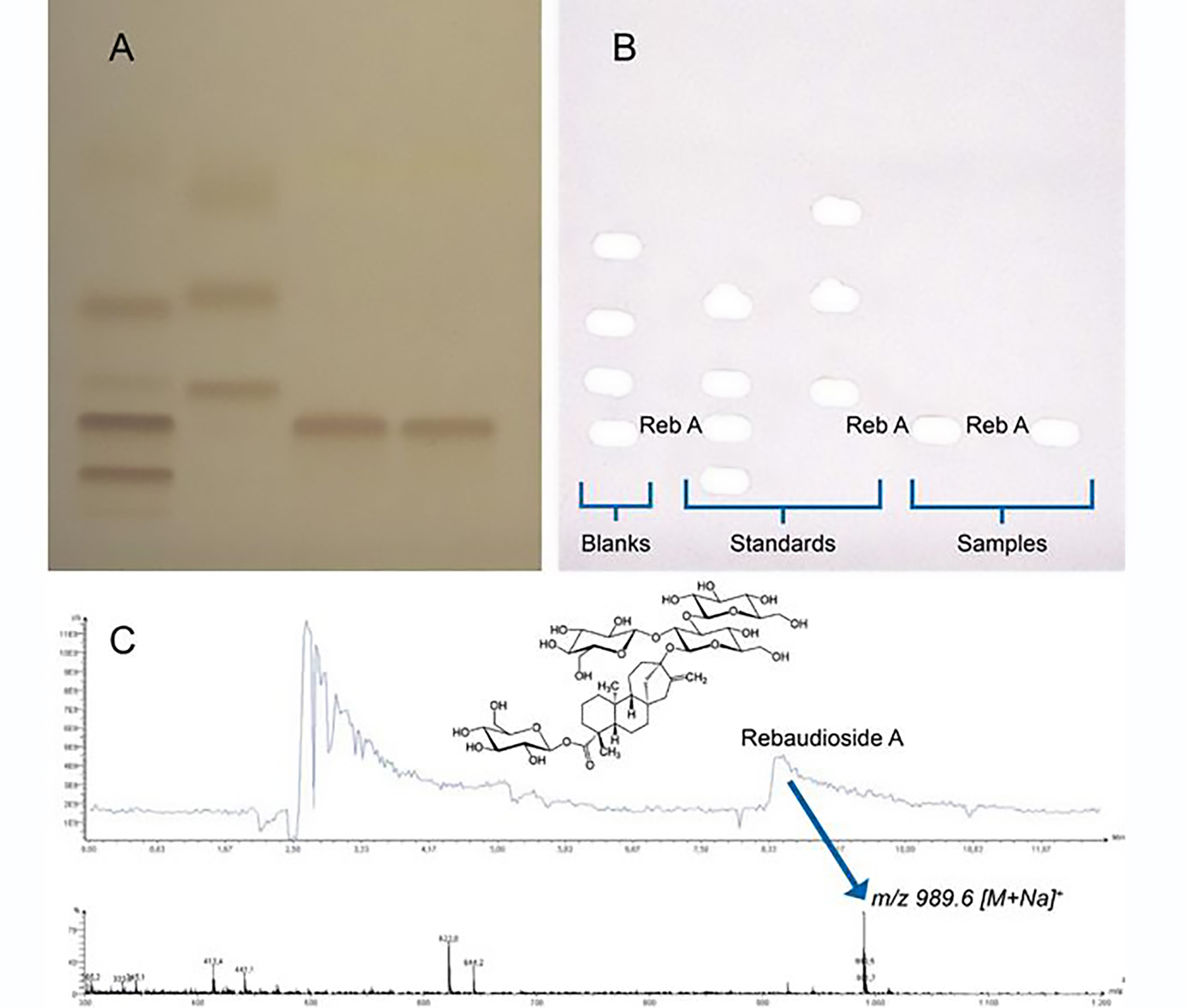

Characterization of separated compounds by Mass Spectrometry (Steviol glycosides in Stevia formulations*)

A: Chromatogram for localizing the zones (derivatized with ß-naphtol reagent)

B: HPTLC plate after elution of zones with the TLC-MS Interface 2

C: HPTLC-ESI-MS spectra of Rebaudioside A, m/z 989.6 [M+Na]+

*Morlock et al., Journal of Chromatography A, 1350 (2014) 102–111

Downloads

Brochure TLC-MS Interface 2
pdf
Instruction Manual TLC-MS Interface 2
pdf
Declaration of Conformity TLC-MS Interface 2
pdf
Installation of Push Start for MS data acquisition
pdf
Replacement of TLC-MS Interface 2 elution head
pdf

Technical Specifications

General Data

Plate types

TLC/HPTLC glass plates and aluminium foils of sizes up to 20 x 20 cm and layer thickness up to 300 μm

Standard flow rate

50–300 μL/min

Downforce

max. 400 N

Gas supply pressure

4–6 bar compressed air or N2

Electrical Data

Laser type

5 mW, laser class 1

Electrical power

Two batteries 1.5 V, AA/LR6 size

Battery duration

Up to 100 hours

Chemical Data

Elution head capillaries

Stainless steel passivated and rinsed with reagent-grade methanol

Frit

2 μm stainless steel

Elution head

Stainless steel

Mechanical Data

Dimensions (W x D x H)

275 x 425 x 275 mm

Weight

14.5 kg

Ordering Information

022.8440

CAMAG® TLC-MS Interface 2 including oval elution head 4 x 2 mm (mounted), for elution of substances from TLC/HPTLC layers,semi-automatic instrument involving automatic elutionhead movement, cleaning of the elution path withcompressed air, manual positioning and switching, table size 275 x 425 x 275 mm (W x D x H)

022.8441

CAMAG® TLC-MS Interface 2 including round elution head 4 mm (mounted), for elution of substances from TLC/HPTLC layers,semi-automatic instrument involving automatic elution head movement, cleaning of the elution path with compressed air, manual positioning and switching, table size 275 x 425 x 275 mm (W x D x H)
