CAMAG® Linomat 5

    With the Linomat 5 samples are sprayed onto TLC/HPTLC plates in the form of bands with nitrogen or compressed air. Application is automatic, only changing the syringe (filling, inserting and rinsing) is manual. The Linomat 5 is suitable for small sample throughput.

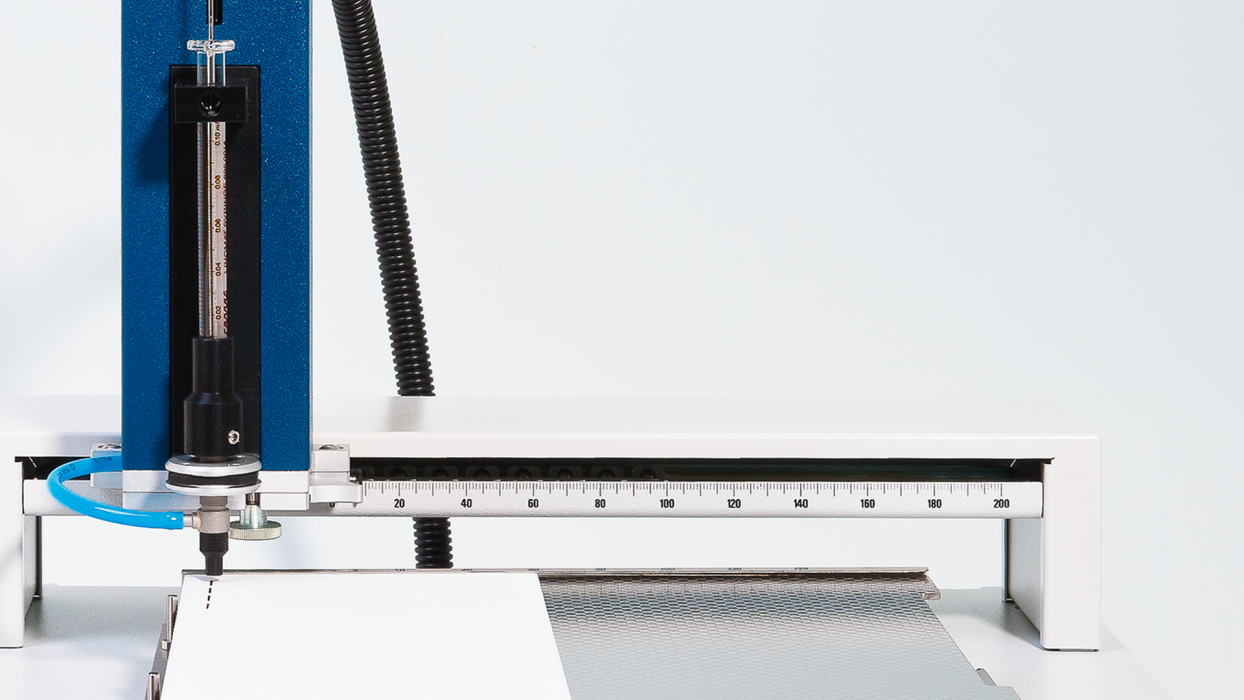

Linomat 5, sample application

Application is automatic, only changing the syringe (filling, inserting and rinsing) is manual.

Key Features

  • Semi-automatic application
  • Application of spots or bands
  • Any plate format up to 20 x 20 cm
  • Spray-on application
  • Data input through visionCATS software or keypad

Software-controlled operation with visionCATS

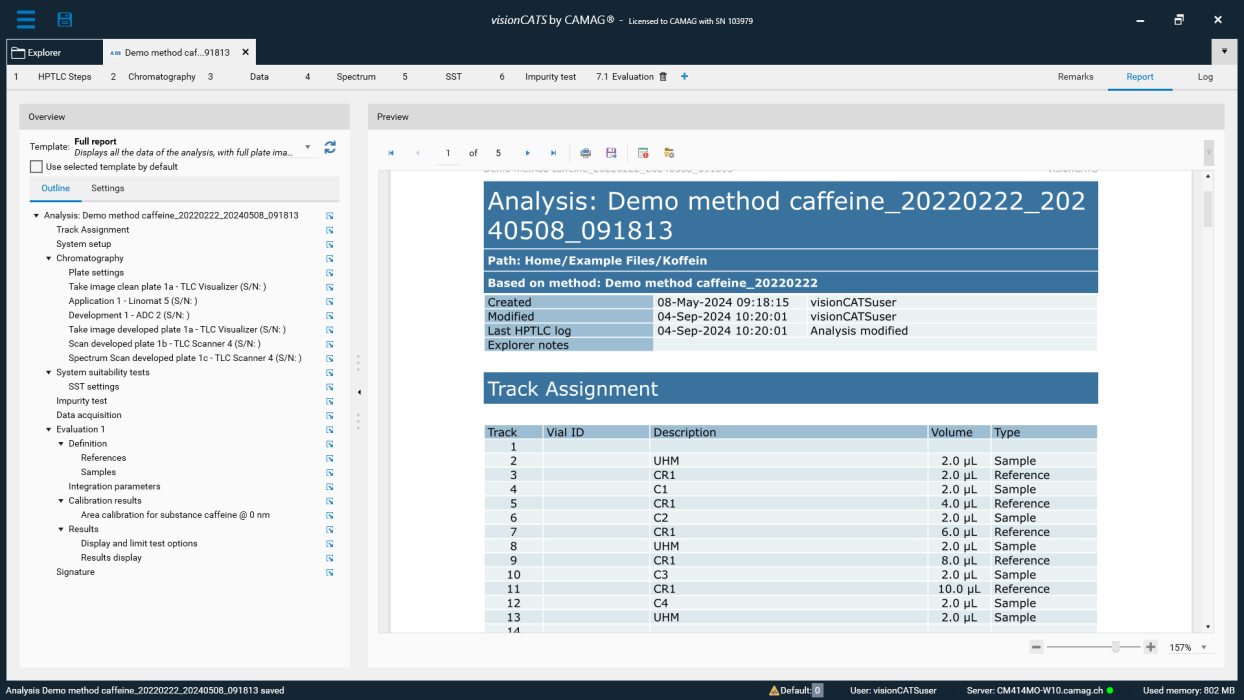

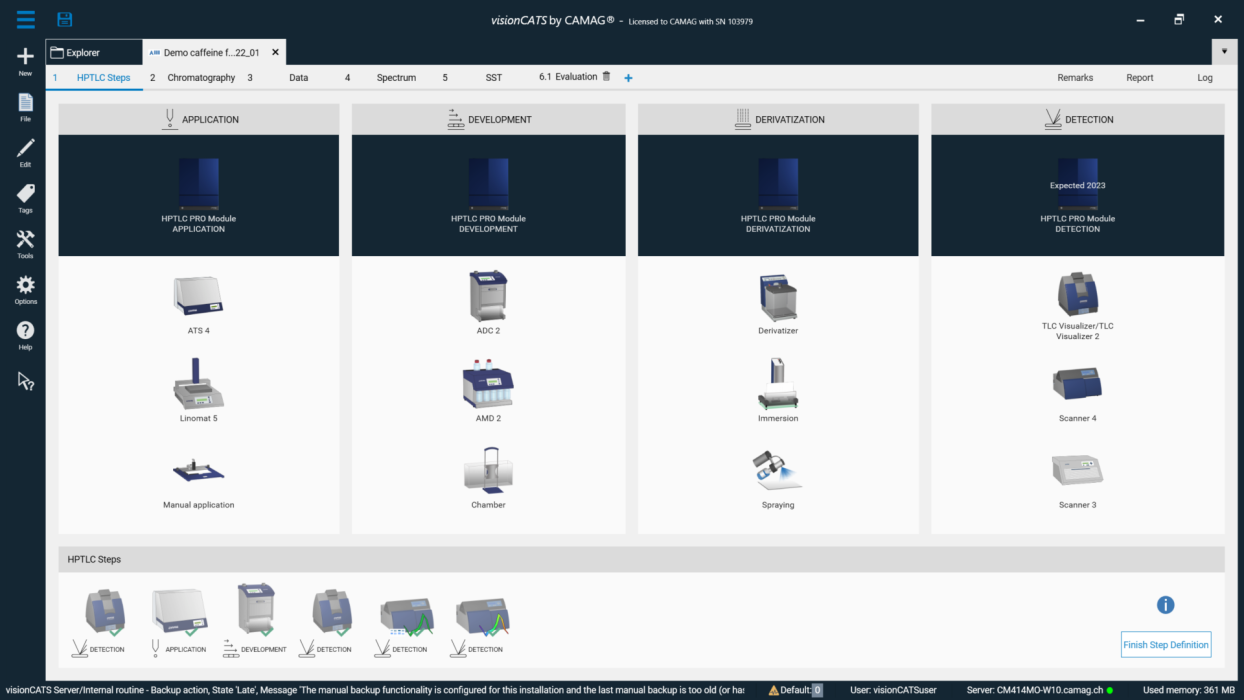

The Linomat 5 is controlled by visionCATS, the new generation of HPTLC software. Instrument handling is now easier and more convenient. Simply select a plate format, fill in the sequence table and start working. With visionCATS, the Linomat 5 can be IQ/OQ qualified and used in a cGMP environment.

Operation in stand-alone mode

For those who use the Linomat 5 infrequently stand-alone mode is available. Up to ten methods can be entered either manually via the keypad or downloaded to the instrument from a computer running a licensed visionCATS program. In stand-alone mode the keypad is used to enter application parameters or to select a saved method.

Application as bands

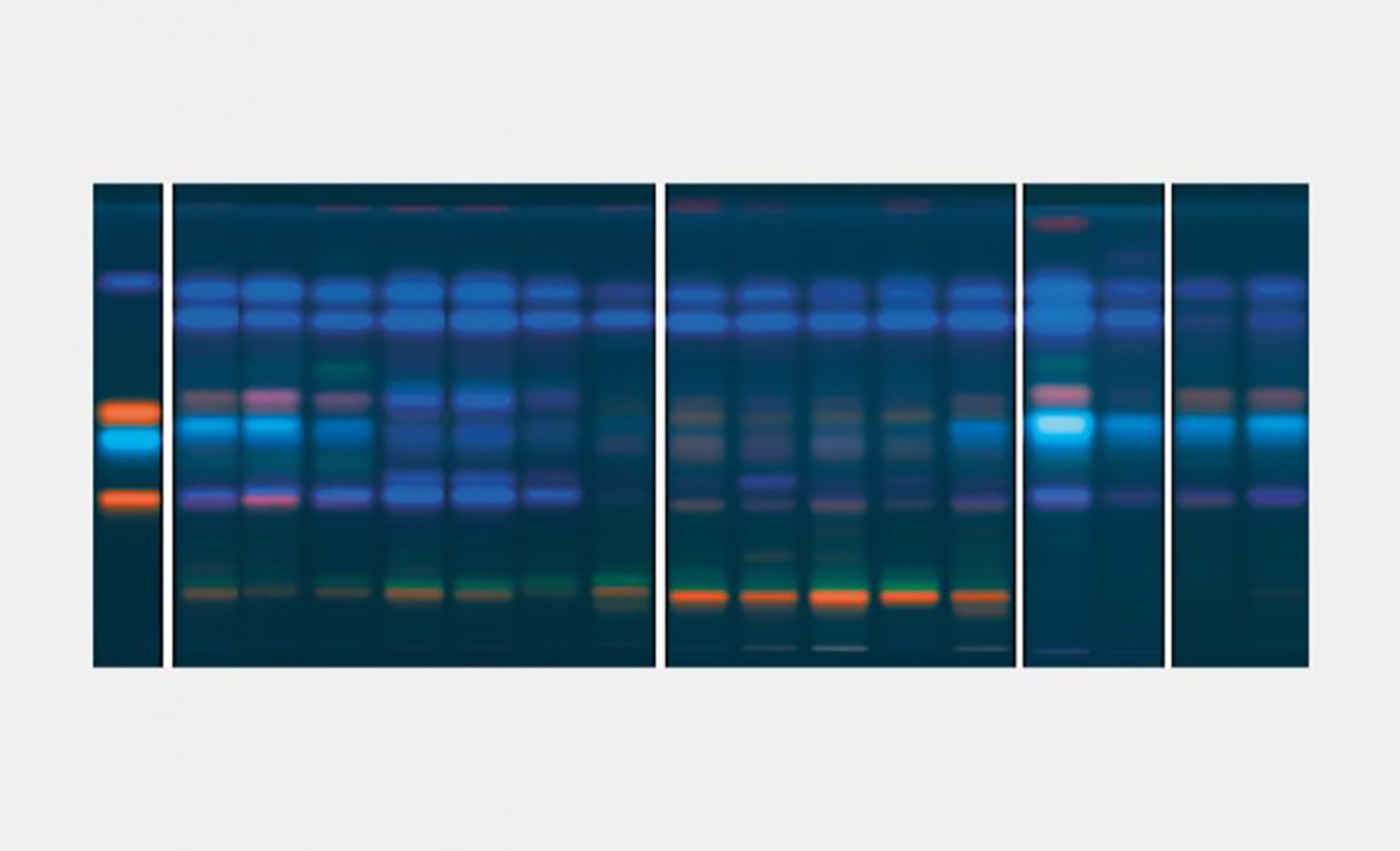

HTPLC fingerprint (flavonoids) of green and black tea samples representing different geographic origins.

Track assignment (tracks taken from different plates)

Track

Details

1

Reference substances with increasing RF: rutin, chlorogenic acid, hyperoside, gallic acid

2–8

Green tea from China

9–13

Green tea from Japan

14–15

Green tea from India

For comparison

16–17

Black tea from Sri Lanka

Downloads

Brochure Linomat 5
pdf
Instruction Manual Linomat 5
pdf
Declaration of Conformity Linomat 5
pdf

Technical Specifications

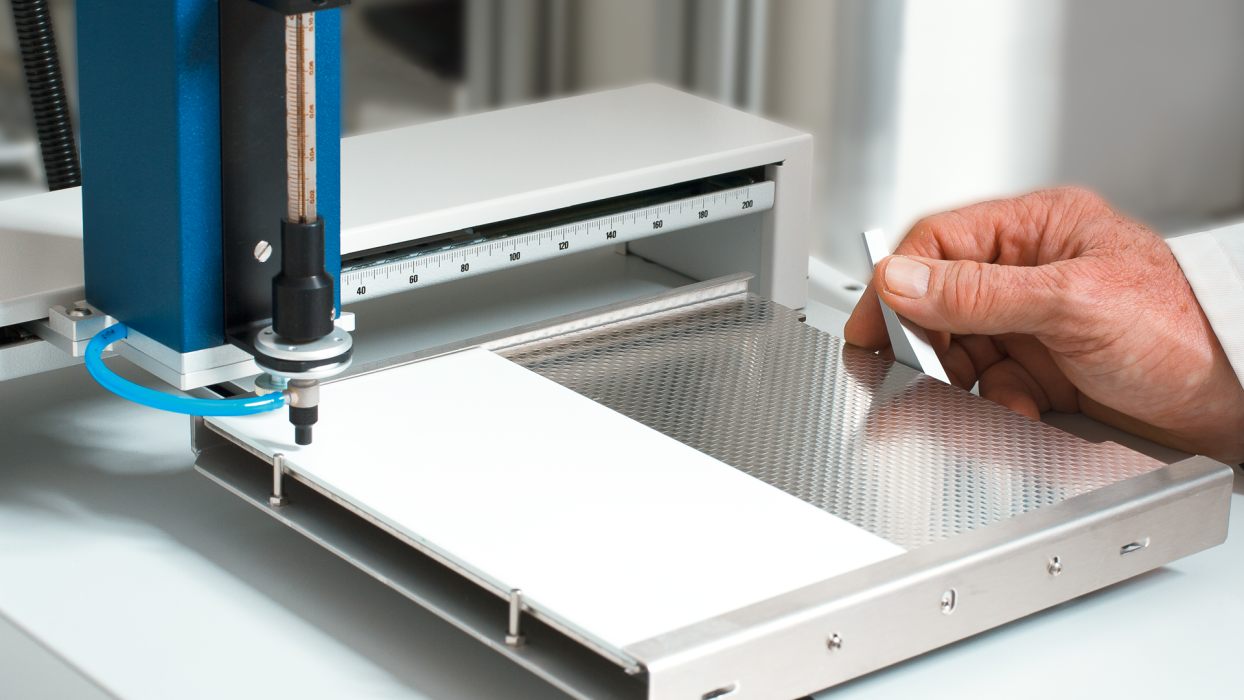

Object support

For objects up to 20 x 20 cm

Stage drive

Stepping motor 3200 steps/rotation, 8 steps = 0.1 mm

Band length 0 (spot) - 190 mm in steps of 0.1 mm

Speed approx. 10 mm/s; the speed is automatically adapted such that a whole number of passages is reached with the volume selected.

Dosage syringe drive

Stepping motor 1600 steps/rotation

100 nL = 120 steps with 100 µL syringe

100 nL = 24 steps with 500 µL syringe

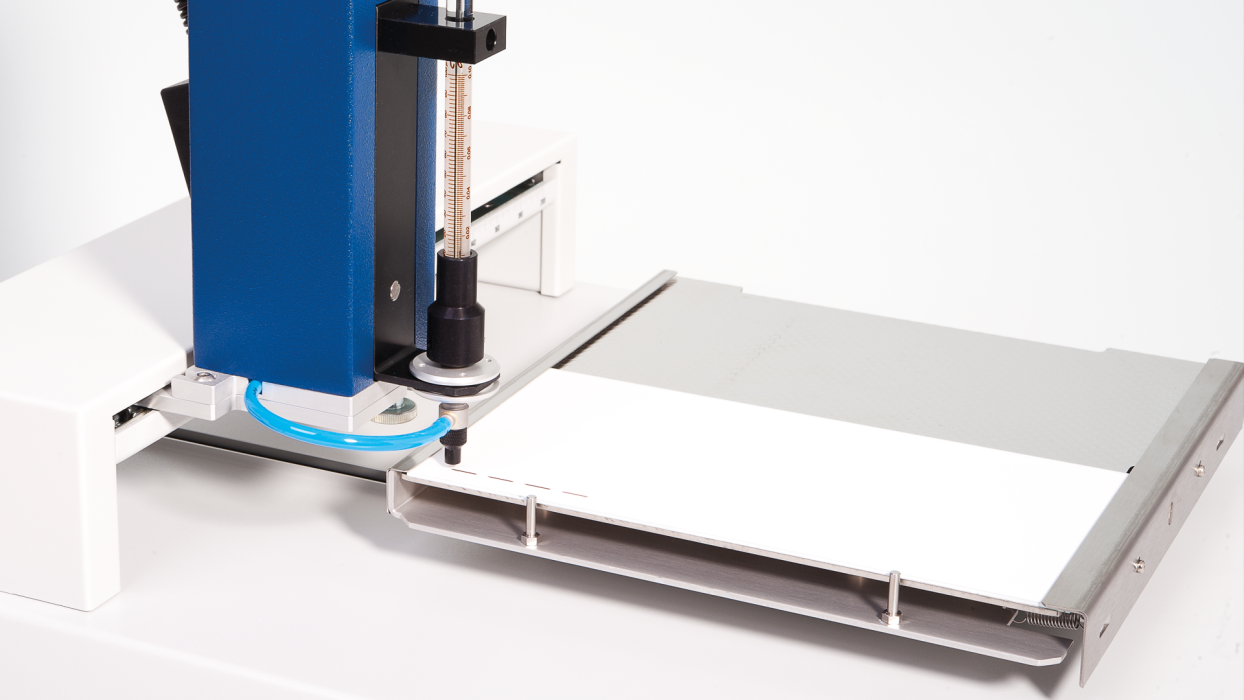

Sample dosage syringe

selectable 100 µL or 500 µL

Memory

10 methods, backup min. 10 years

LCD display

2 lines of 16 characters ea.

Power connection

85–250 V~ 47–63 Hz 30 VA

Gas supply

4–6 bar (60–90 PSI) preferably nitrogen; consumption approx. 1.0 L/min

Dimensions (W x D x H)

360 x 510 x 410 mm

Weight

12.5 kg

Ordering Information

022.7808

CAMAG® Linomat 5

semi-automatic sample application system for bandwise spray-on application of the sample onto the chromatographic layer, including one dosing syringe 100 µL, 90–230 V

028.0000

CAMAG® HPTLC Software visionCATS Basic Version

including access and control of all instruments - 1 server, 1 client Instrument Diagnostics (xQ), analytical reports - access to method library. Needs to be bought separately and is not included in any Ultimate Package

695.0014

Dosage syringe 100 µL for Linomat

695.0015

Dosage syringe 500 µl for Linomat
