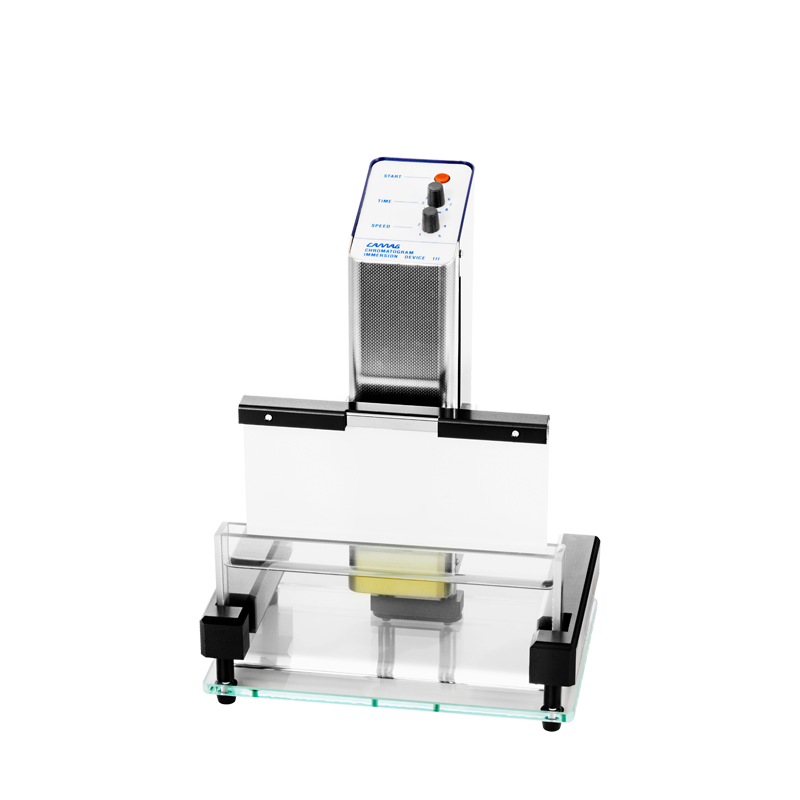

CAMAG® Chromatogram Immersion Device 3

    The Chromatogram Immersion Device 3 is used for automated dipping. TLC/HPTLC plates are immersed with uniform vertical speed into derivatization reagents or solutions for plate impregnation.

CAMAG® Chromatogram Immersion Device 3

For proper reagent transfer, the chromatogram must be immersed and withdrawn at a controlled uniform speed. By maintaining a well defined vertical speed and immersion time, derivatization conditions can be standardized and «tide marks», which can interfere with densitometric evaluation, are avoided.

Key Features

  • Uniform vertical speed
  • Immersion time selectable
  • The device can be set to accommodate 10 cm and 20 cm plate height
  • Battery operated, independent of power supply

Downloads

Instruction Manual Chromatogram Immersion Device 3
pdf
Declaration of Conformity Chromatogram Immersion Device 3
pdf

Ordering Information

022.6606

CAMAG® Chromatogram Immersion Device 3 for TLC and HPTLC plates up to 20 x 20 cm, without dip tanks

022.6627

Dip tank (sintered sheet glass) for plates 20 x 20 cm, with lid

022.6628

Dip tank (sintered sheet glass) for plates 20 x 10 cm, with lid

022.6622

Lid, polyethylene, for dip tanks 20 x 10 cm and 20 x 20 cm

022.6619

Bench top rack for three dip tanks
